Three Major Crushers Explained: Functions and Applications of Jaw, Hammer, and Roll Crushers

Introduction

In mining, building materials production, and metallurgical industries, crushers serve as the first-step processing equipment whose performance directly impacts the efficiency and quality of subsequent production processes. This article provides an in-depth analysis of three mainstream crushing devices – jaw crushers, hammer crushers, and roll crushers – covering their working principles, structural characteristics, usage methods, and application scenarios. From the rugged durability of jaw crushers for primary crushing, to the efficient fine-crushing capability of hammer crushers, to the precise particle size control of roll crushers, each equipment type possesses unique advantages and suitable conditions. We will also share practical operational considerations and maintenance techniques to help users maximize equipment performance, extend service life, and reduce production costs.

Jaw Crusher: The Rugged Primary Crushing Specialist

The jaw crusher stands as one of the oldest yet most reliable pieces of equipment in mineral processing, having evolved through technological improvements since its invention by American E.W. Blake in 1858 to become indispensable for primary crushing operations. Characterized by simple structure, reliable operation, and easy maintenance, this crusher type finds extensive application in mining, metallurgy, construction materials, highways, railways, water conservancy, and chemical industries for processing various materials with compressive strength not exceeding 320 MPa.

The working principle of jaw crushers relies on the periodic compressive motion of the movable jaw. When the motor drives the eccentric shaft to rotate via belts, the vertical connecting rod moves up and down, causing two toggle plates to extend or contract gradually. As the toggle plates extend, they force the movable jaw plate toward the fixed jaw plate, subjecting material between them to comprehensive compression, splitting, and bending forces. When the toggle plates contract, the movable jaw plate withdraws from the fixed jaw plate, allowing crushed material to discharge by gravity. This intermittent crushing mechanism means only half of each eccentric shaft rotation cycle contributes to actual crushing, resulting in relatively higher energy consumption per unit.

Structurally, jaw crushers mainly consist of the frame, working mechanism (fixed and movable jaw plates), transmission mechanism (eccentric shaft, connecting rod, toggle plates), adjustment device (discharge opening adjustment mechanism), safety device, and lubrication system. Based on different movable jaw trajectories, they can be categorized into simple swing type (double toggle) and complex swing type (single toggle). The simple swing type performs only basic circular motion with lower crushing efficiency but more even jaw plate wear, while the complex swing type combines circular motion with vertical movement – the larger upper horizontal stroke facilitates large lump crushing while the lower portion promotes discharge, offering about 30% higher overall efficiency than simple swing types, though with faster wear on lower jaw plate sections.

Operation techniques prove crucial for jaw crushers. Pre-start checks must include: inspecting crushing plate wear and properly adjusting discharge opening size; removing residual ore from the crushing chamber; checking connection bolt tightness; confirming protective cover integrity; adjusting V-belt and tension spring tightness; and verifying electrical and signal systems. Startup should begin with the oil pump motor and cooling system, waiting 3-4 minutes for normal oil pressure before engaging the main motor, always starting without load and only feeding material after stable operation. During operation, maintain uniform feeding to prevent chamber overfilling, with maximum feed size not exceeding 0.85 times the feed opening width, strictly avoiding non-crushable objects (like metal pieces such as shovel teeth or drill bits) entering the crushing chamber.

Jaw crusher advantages include: simple and reliable structure with easy part replacement; wide applicability across material hardness levels; large crushing ratio (typically 3-6); convenient discharge opening adjustment for controlled product sizing. Limitations involve: higher energy consumption due to intermittent operation; significant vibration and noise; poorer particle shape with more flaky particles. Modern large jaw crushers can process up to 800 tons per hour with feed sizes reaching about 1800 mm. To meet diverse needs, hydraulic jaw crushers have emerged, employing hydraulic devices for safety and adjustment functions with higher automation levels.

Table: Jaw Crusher Technical Parameters Reference

Hammer Crusher: The Versatile High-Efficiency Fine Crusher

Hammer crushers serve as efficient medium/fine crushing equipment, widely applied in cement, construction materials, coal, metallurgy, and chemical industries thanks to their high reduction ratios and uniform product sizing. Unlike jaw crushers, hammer crushers utilize impact crushing principles, making them particularly suitable for medium-hardness brittle materials with compressive strength below 120MPa, such as limestone, gypsum, coal, and shale. These crushers have certain moisture requirements (typically below 12%) to prevent grate clogging.

The core working component of hammer crushers is a rotor with multiple hammers arranged in specific patterns. When the motor drives the rotor to rotate at high speed (usually 1000-1500 rpm), centrifugal force extends the hammers radially to apply striking, impact, shearing, and grinding actions on incoming material. Material first undergoes direct hammer impact for primary crushing, then gains kinetic energy to fly toward the liner for secondary impact crushing. Particles smaller than grate gaps discharge directly, while larger pieces receive continued hammer impact and grinding on the grates until reaching required sizes. This continuous crushing mechanism gives hammer crushers higher productivity and lower energy consumption per unit compared to intermittently operating jaw crushers.

By rotor structure and hammer arrangement, hammer crushers divide into single-rotor and double-rotor types, with multi-row single-rotor versions being most common. By application, they further classify into standard (PC series) and ring hammer (PCH series) types, the latter mainly used in coal/coke industries with ring-shaped hammers offering better wear resistance and higher efficiency. Rotor rotation designs include reversible and non-reversible types, with reversible models balancing hammer wear by alternating rotation directions to extend service life.

Installation and commissioning significantly affect hammer crusher performance. Installation requires: mechanical elevation error within ±0.5mm; center position error below ±0.2mm; machine frame cushioned with hardwood to absorb vibration with levelness error controlled within ±0.2mm; strict alignment between motor and crusher shafts with coupling misalignment within tolerance. Particularly critical is hammer balance - symmetric hammers should have similar shapes and weights (within 30-40g difference), with complete rotor assemblies requiring static balance tests to ensure no more than 1/10圆周 rotation when stopped at any position. Severe vibration during operation may indicate dynamic imbalance needing rotor axis adjustment to coincide with principal inertia axis.

Key operational points include: pre-start checks of all connections and internal clearance; confirmation of proper bearing lubrication; grate gap adjustment to desired size; no-load startup before gradual feeding; monitoring bearing temperature during operation (normal temperature rise below 35°C, maximum below 70°C). Shutdown should begin with feeding cessation, waiting for complete material discharge before powering off. Daily maintenance focuses on wear conditions of vulnerable parts like hammers, liners, and grates for timely repair or replacement.

Hammer crusher advantages include: simple compact structure with light weight and low energy consumption per unit; high productivity with large reduction ratios (10-25); uniform fine products containing more cubic particles and less over-crushing; continuous reliable operation with easy maintenance and replaceable vulnerable parts. Limitations involve: rapid hammer wear unsuitable for high-hardness materials; grate clogging risks with wet/sticky materials; significant dust and noise requiring auxiliary dust collection and noise reduction facilities.

Table: Hammer Crusher Common Troubleshooting

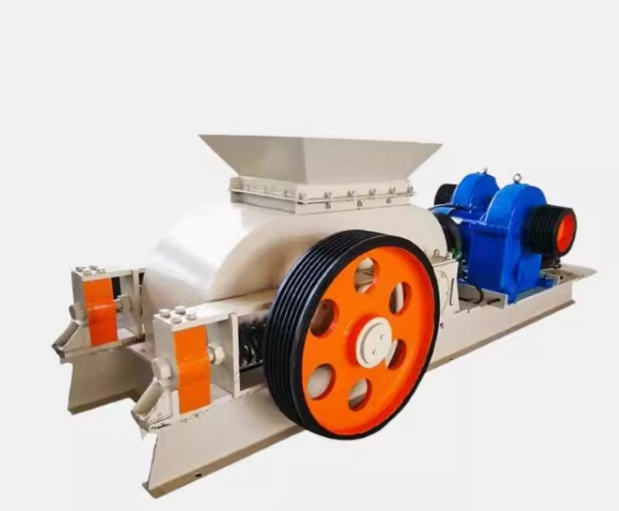

Roll Crusher: The Precision Particle Size Specialist

Roll crushers (or double roll crushers) represent medium/fine crushing equipment employing compression crushing principles, renowned for precise size control and low over-crushing rates, occupying important positions in cement, refractory materials, construction, chemical, and metallurgical industries. Particularly suitable for brittle materials of medium hardness or below—such as cement clinker, limestone, coal, coke, bauxite, and feldspar—these crushers excel in glass raw material preparation, construction sand production, and various mineral processing applications.

The core working components of roll crushers are two parallel rollers, each driven independently or through gear transmission to achieve counter-rotation. Material fed into the crushing chamber between rollers gets drawn into the crushing zone by roller surface friction, undergoing compression and splitting as rollers rotate, with properly sized material discharging through the gap (discharge opening). Roll surfaces can be smooth, toothed, or grooved depending on material characteristics: smooth rollers mainly compress materials suited for hard, abrasive substances; toothed/grooved rollers add splitting effects for higher efficiency but faster wear.

Roll crushers’ size adjustment system stands out as a key feature. Common adjustment methods include wedge and shim mechanisms: wedge systems move wedges vertically via adjustment bolts to alter the gap between movable and fixed rollers; shim systems modify roller spacing by adding/removing shims. This stepless adjustment enables precise product size control per production needs. Additionally, roll crushers typically incorporate spring or hydraulic safety devices—when unbreakable objects enter, movable rollers automatically retreat to widen discharge openings, eject foreign matter, then return to normal position, effectively protecting equipment from damage.

Standard operating procedures include: pre-operation inspection of roller surface wear and proper discharge opening adjustment; clearing surrounding debris and ensuring safety guards are intact; emphasizing ferrous removal from feed (metal objects like drill bits falling between rollers cause severe damage, recommending magnetic separators upstream); special attention with sticky materials prone to clogging (require shutdown for clearing, never poking during operation); caution with lumpy feed to prevent large pieces ejecting from crushing zone causing injury.

Roll crusher performance characteristics include: high crushing efficiency with smooth, relatively quiet operation; minimal bearing temperature rise for extended lifespan; easy roller replacement after wear; uniform, precisely adjustable particle sizes with minimal over-crushing; simple compact structure with convenient adjustment. Drawbacks involve: relatively lower processing capacity; rapid roller surface wear especially with hard materials; unsuitability for wet/sticky materials causing adhesion and clogging.

Modern roll crushers have improved upon traditional designs in several aspects: adopting hydraulic adjustment systems replacing mechanical ones for easier operation; applying wear-resistant alloy surfacing or embedded hard alloy pins to extend roller life; adding automatic control systems for overload protection and remote monitoring; developing dual-motor independent drive systems for better energy utilization. These innovations enhance roll crushers’ advantages in precision crushing applications, making them preferred equipment for producing uniformly sized products.

Table: Performance Comparison of Three Crusher Types

Selection and Application Strategies for the Three Crusher Types

In actual industrial production, jaw, hammer, and roll crushers each have optimal application scenarios, where scientific selection and rational combination prove crucial for optimizing processes and reducing costs. Understanding these equipment types’ performance differences and complementary relationships helps design efficient crushing flows to meet diverse industry requirements for particle size and capacity.

Primary crushing unquestionably favors jaw crushers. Their powerful crushing capability and adaptability to large lumps make them the “first barrier” in mining and aggregate processing lines. Jaw crushers handle raw ore up to 1.5m diameter—unmatched by hammer or roll crushers. For hard rock like granite or basalt, jaw crushers are virtually the only choice for initial size reduction. Modern large jaw crushers processing 800 t/h provide ideal feed sizes for downstream stages. Another unique jaw crusher application is construction waste recycling, where their strong crushing force effectively processes reinforced concrete blocks that challenge other crusher types.

Medium/fine crushing showcases hammer crushers’ unparalleled efficiency. In cement production, hammer crushers serve as the backbone for secondary limestone crushing, reducing ~200mm lumps directly to 0-25mm for raw mill feeding. In coal processing, ring hammer crushers prepare raw coal to 0-3mm washing sizes with minimal over-crushing to ensure clean coal recovery rates. Hammer crushers’ high reduction ratios make them especially economical for single-stage crushing applications like small/medium quarries where one hammer crusher completes entire size reduction from raw stone to final product, greatly simplifying process flows. However, hammer crushers are unsuitable for high-silica hard materials that would cause abnormally rapid hammer wear and substantially increase production costs.

Precision crushing is the domain of roll crushers. In refractory material production, they precisely crush bauxite clinker to uniform 1-3mm sizes unachievable by ball mills. For coal briquette preparation, roll crushers ensure uniform coal powder sizing for consistent briquette strength and combustion performance. In glass manufacturing, they prepare strictly sized quartz sand raw materials, avoiding oversize or undersize particles affecting glass quality. Another major roll crusher advantage is extremely low over-crushing rates, making them irreplaceable for applications requiring particle integrity preservation, like certain metallurgical auxiliary material preparation.

Practical production lines often combine these crushers for multi-stage crushing systems. Typical configurations include “jaw + hammer” or “jaw + roll” combinations—the former suits applications requiring medium final sizes like construction aggregate production; the latter fits processes needing precise size control like refractory or glass raw material preparation. Special applications may even employ “jaw + hammer + roll” three-stage systems for extremely strict particle size distribution requirements.

Selection considerations primarily include: material characteristics (hardness, moisture, viscosity, soil content); feed size and required product size; system capacity requirements; equipment installation space constraints; investment and operating cost budgets. Generally, jaw crushers involve higher initial investment but lower maintenance costs; hammer crushers have moderate upfront costs but frequent vulnerable part replacement; roll crushers offer low overall operating costs but limited capacities. In electricity-scarce regions, energy consumption differences also matter—hammer crushers typically have the lowest energy consumption per unit, jaw crushers the highest.

With technological progress, all three crusher types are advancing toward intelligent and high-efficiency directions. Modern jaw crushers incorporate hydraulic adjustment and overload protection systems for safer, more convenient operation; hammer crushers adopt rotor dynamic balance monitoring and online hammer wear detection to enhance operational stability; roll crushers develop hydraulic differential drive and roller surface automatic compensation systems to further improve size control precision. These innovations breathe new life into traditional crushing equipment, better meeting modern industry demands for refined crushing processes.
